UMI – Cable Support Solution

Specifications

Cable Tray

Product Details

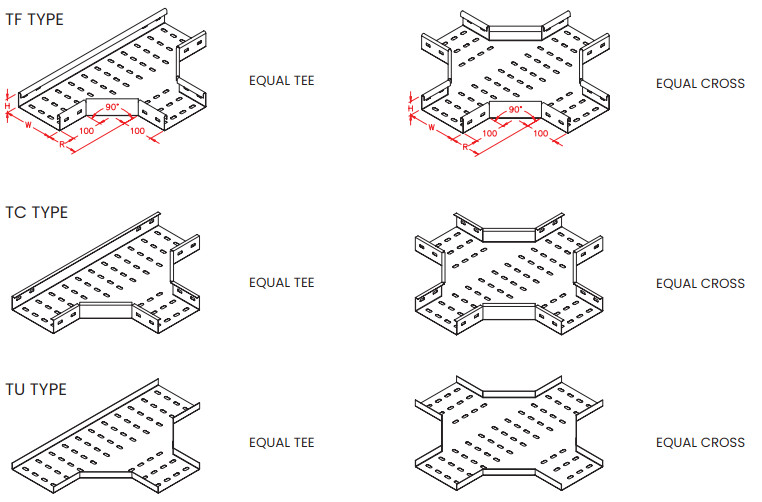

Cable Tray - Horizontal Tee & Cross (Equal)

A horizontal tee and cross (equal) are specific types of cable tray fittings used to change the direction of the cable tray path or to create intersections.

TYPES:-
  1. Horizontal Tee:
    A horizontal tee is a cable tray fitting that allows the main cable tray run to branch off horizontally in a perpendicular direction. It resembles the letter "T" and is used when cables need to be routed to the side of the main cable tray run.
  2. Cross (Equal):
    A cross (equal) is a cable tray fitting that forms a cross-shaped intersection. It allows cables to be routed in four perpendicular directions, creating a junction point where multiple cable tray runs meet. Each arm of the cross is of equal length.

Cable Tray - Horizontal Tee & Cross (Equal)

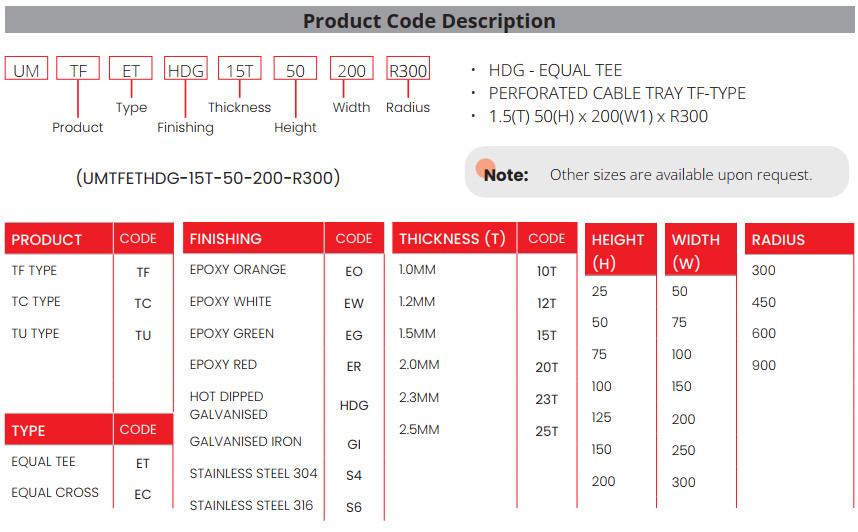

Technical Data

Share This

Frequently Ask Questions

Our products are produced from materials such as hot or cold rolled steel, electro-galvanized steel, pre-galvanized steel or stainless steel.
Product finishing can be either epoxy powder coated, hot dipped galvanized or hot dipped galvanized with epoxy powder coated.
Steel plate are available in few thickness such as G22 or 0.6mm, G20 or 0.8mm, G18 or 1.0mm, G16 or 1.5mm. Any other thickness can be produced with customization request.
Thank you for your interest. We don’t sell directly to consumer. Our product are distribute from our partner distributors. You can contact them direct for purchase inquiry.
Our products are sold by Perniagaan Elektrik TNI Sdn Bhd, our main distributor. You can visit their website (www.tni-e.com.my) for more info.
All our products are SIRIM certified.
